High Precision 5um 920mm (36") Magnetic Linear Scale for Lathe & Milling Machine DRO Systems | CNC Measurement Tool | Workshop & Industrial Use
Free shipping on all orders over $50
7-15 days international
21 people viewing this product right now!
30-day free returns
Secure checkout
37160657
Description

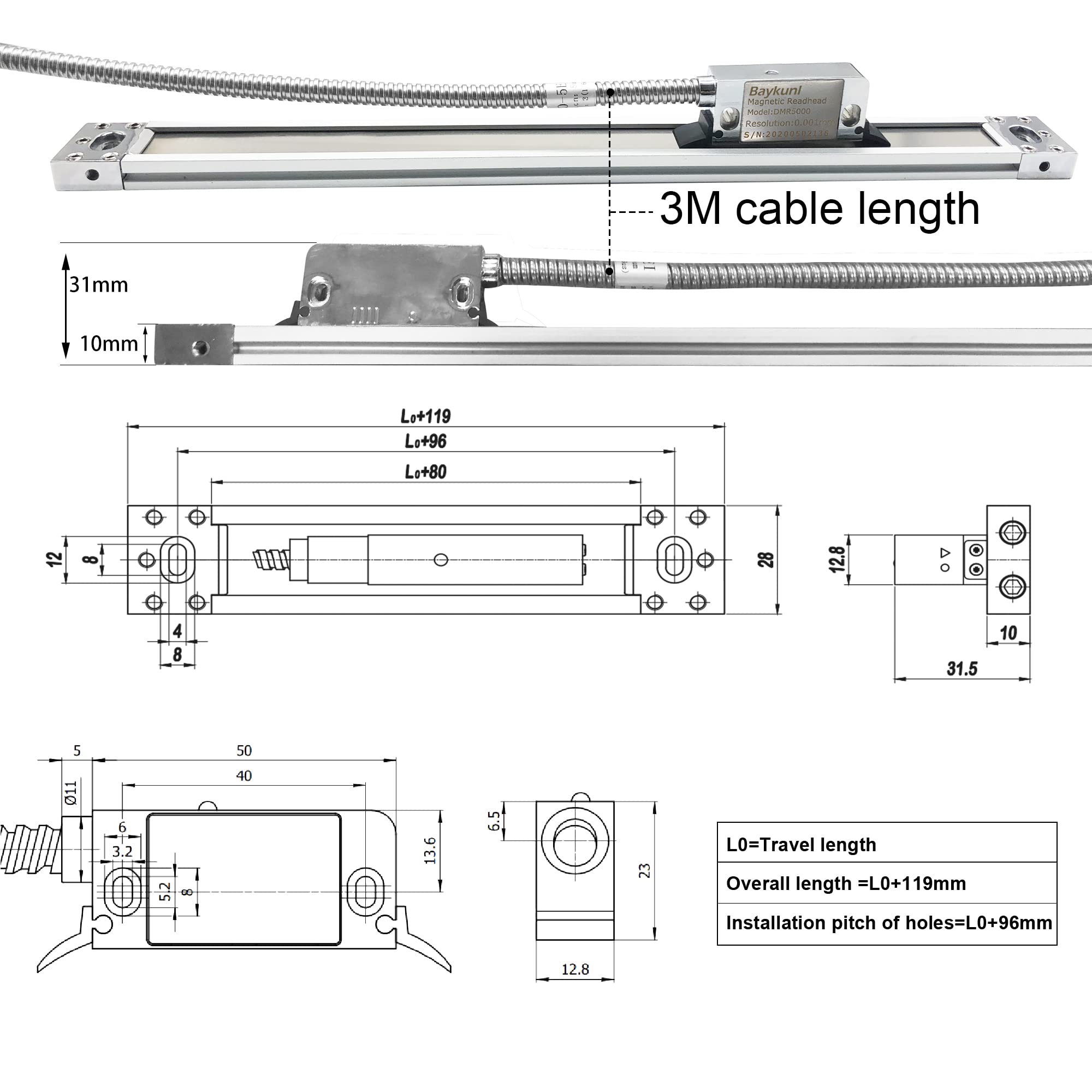

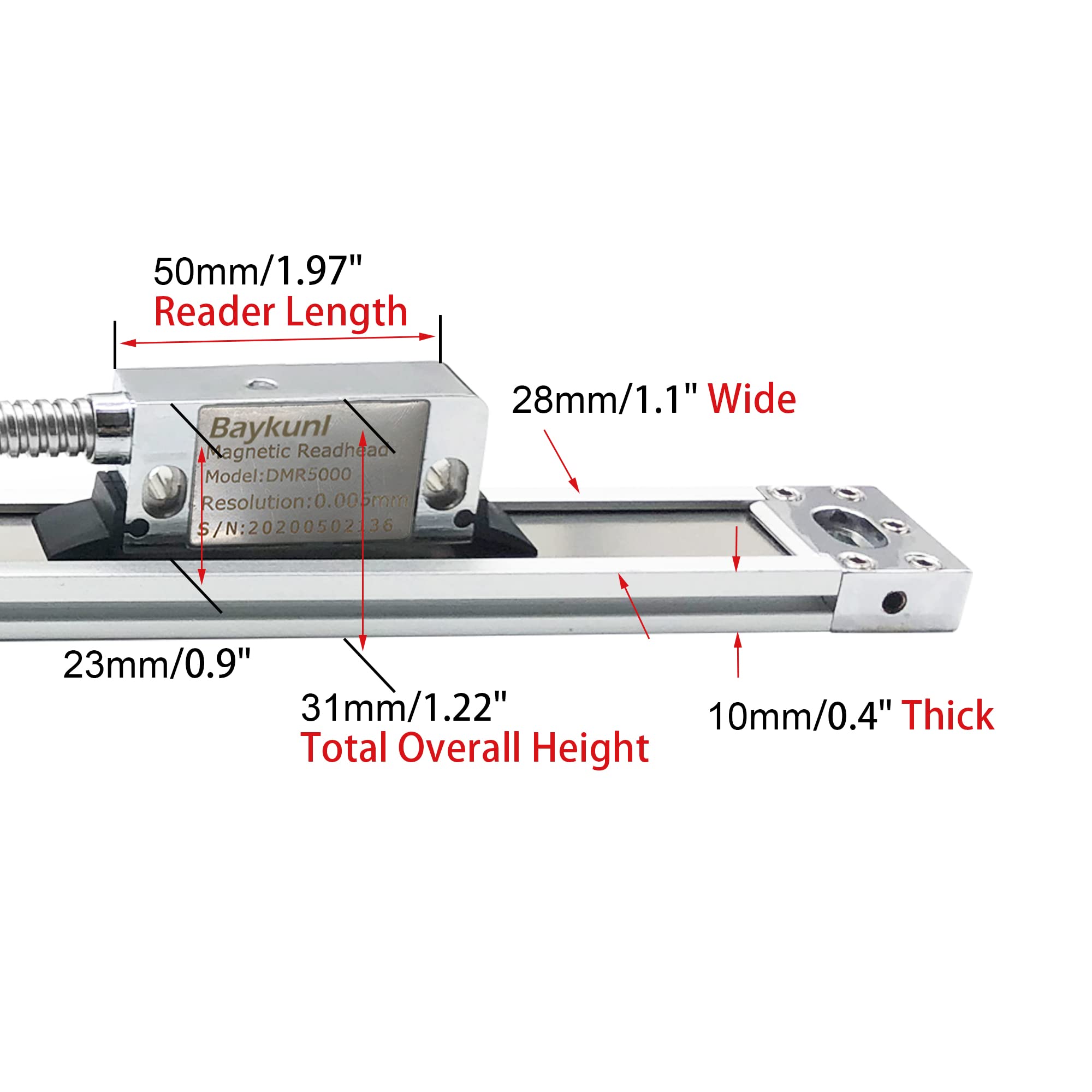

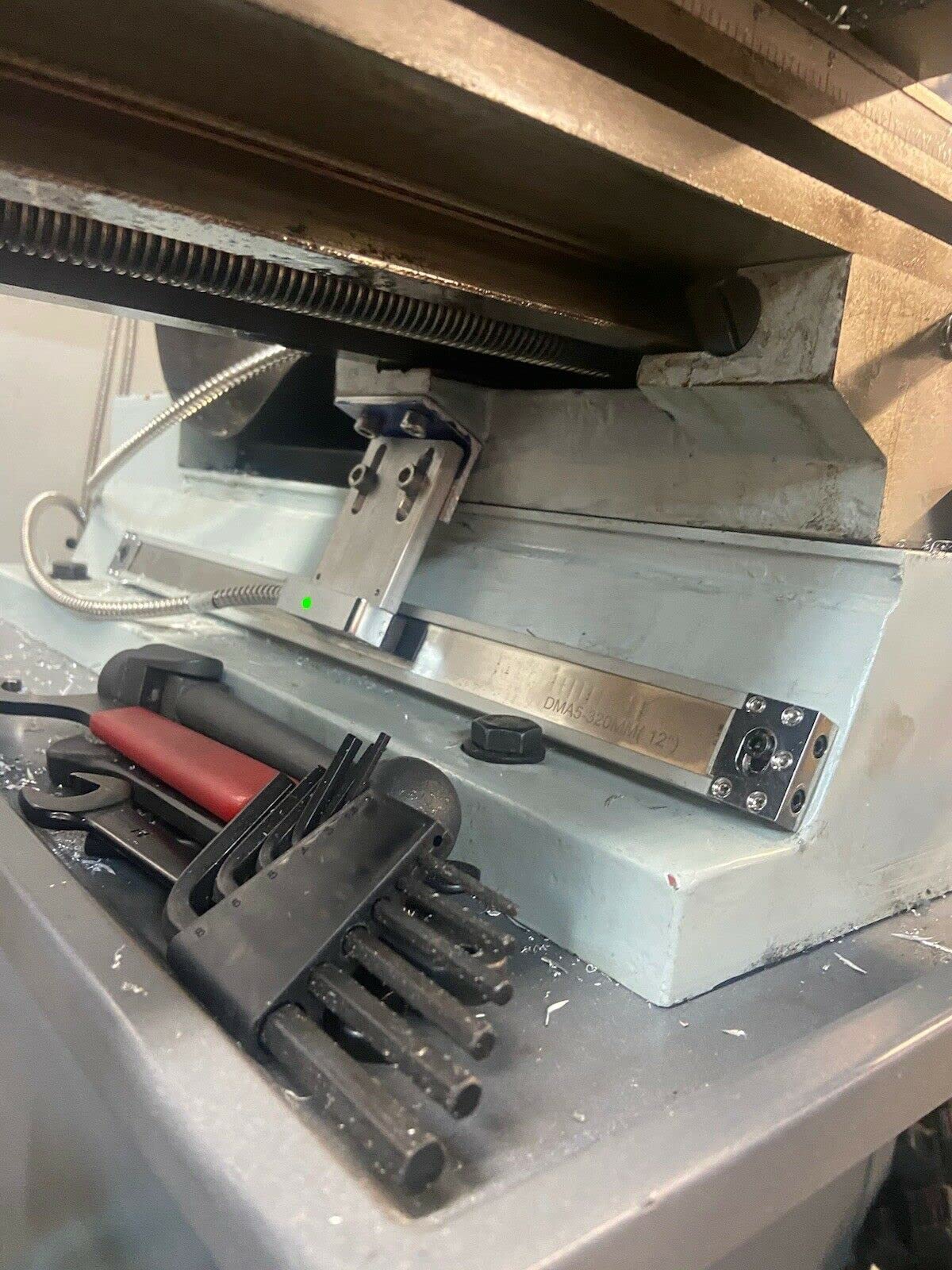

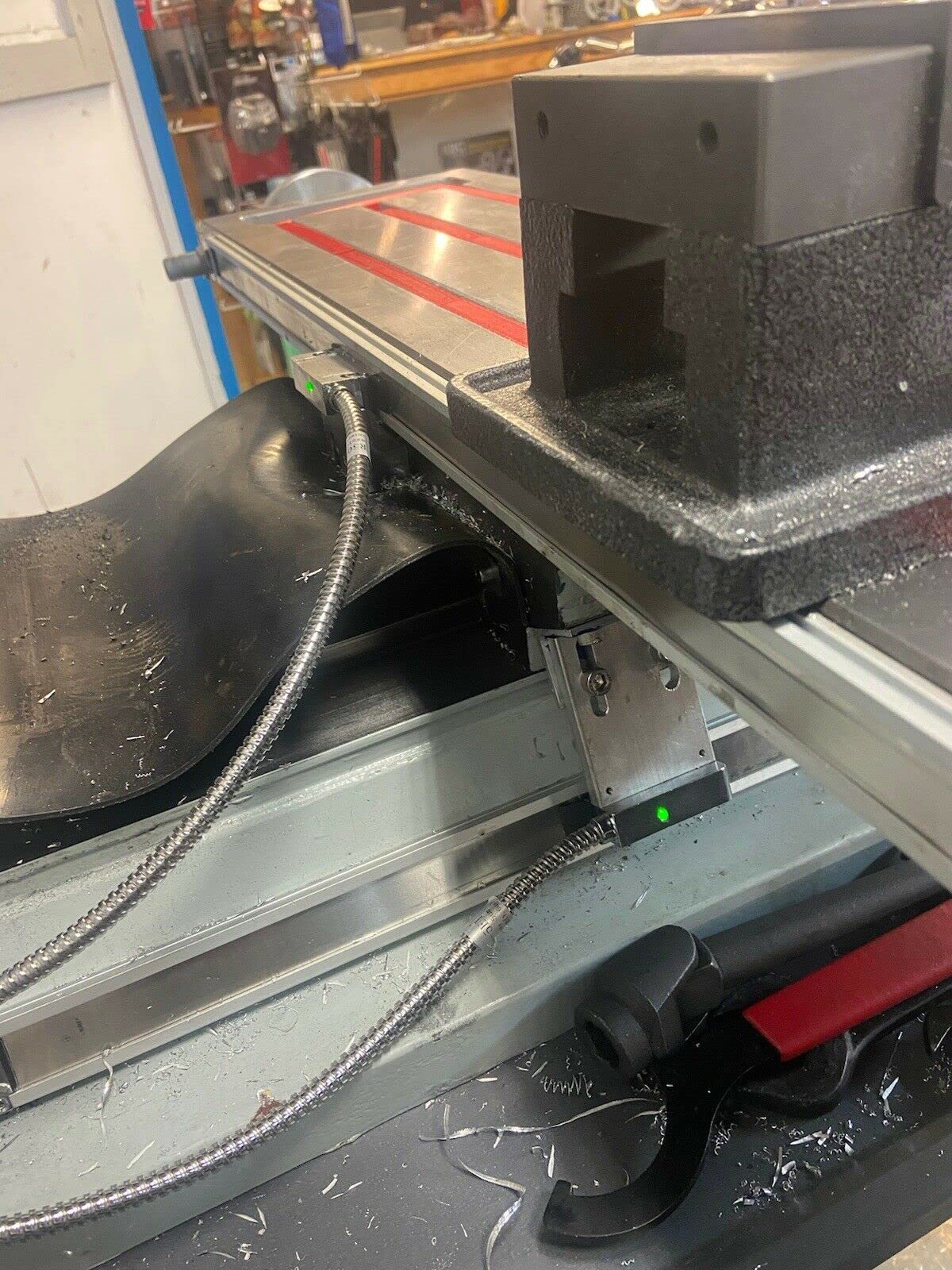

Magnetic Scale Advantage DMR5000 Readhead 5um resolution LED light reminding(Red and Green).LED light equipped for installation status feedbackRubber wiper to clean out surface completelyProtection of the anti-pole of the power and wrong ire connection(voltage<5.5V)High speed,can reach 150Meter/minute for the resolution of 5 micron DMA Magnetic Scale Adopting 3M adhesive on backside,convenient for installation.Magnetic Tape ,Automaticlly increase-decrease controlling ,fo an easy installation way, and a long working life for magnetic tape Standard RS422 Signal 3M cableIdeal choice for limited installation space.Width= 28mm Installtion Dimension :Fully sealed redhead with perfect structure of the profile takes it match IP67 protection classAutomatic gain control teachnics,reduced the requirement for installation,The gap between the reader and tape can be 3mm (5 micron)L0=travel length , Total length =travel length +119mm eg 200mm travel length, total length =319mm Installation On Lathe Mill Machine
Features
Magnetic Seneor ● Die-casting casing,IP67 protection class. ● Contactless measuring,the gap between sensor and tape could be maximum 18mm. ● Ideal choice for limited installation space.● LED light reminding(Red and Green).
Industrial Standard Output Signal Interface Only the industrial standard TTL digital signal output is available. Interface is the industry standard 9 pin DSUB9 connector.
Easy InstallationMagnetic scales are impervious to coolant, liquid or dust, yet are slimmer than linear scale of the other two technologies. They're easier to mount, more durable, and can be broken down into convenient lengths for shipping.magnetic scales is that the readhead and the scale are completely separate components.This means mounting magnetic scales is easier than any other type scale - since the readhead mounts separately from the scale,mounting is much quicker,and a whole lot easier

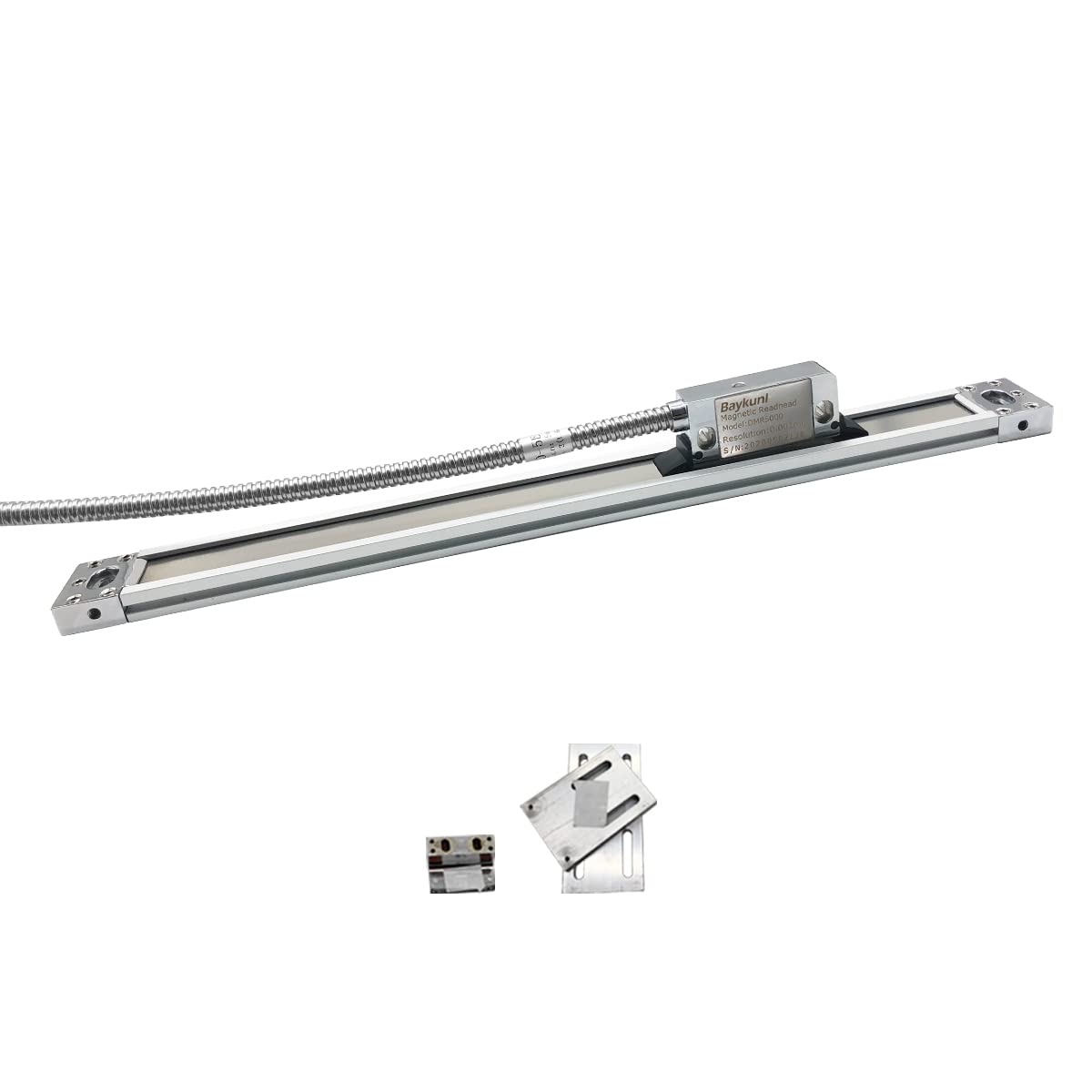

Order Detail 1pcs magnetic scale +Screws +mounting Plate+user manual
