Digital Ultrasonic Thickness Gauge - Precise Metal & Plastic Thickness Tester with Sound Velocity Measurement | Ideal for Industrial Quality Control, Automotive Repair & Construction Material Inspection
Free shipping on all orders over $50
7-15 days international
16 people viewing this product right now!
30-day free returns
Secure checkout
62774308
Description

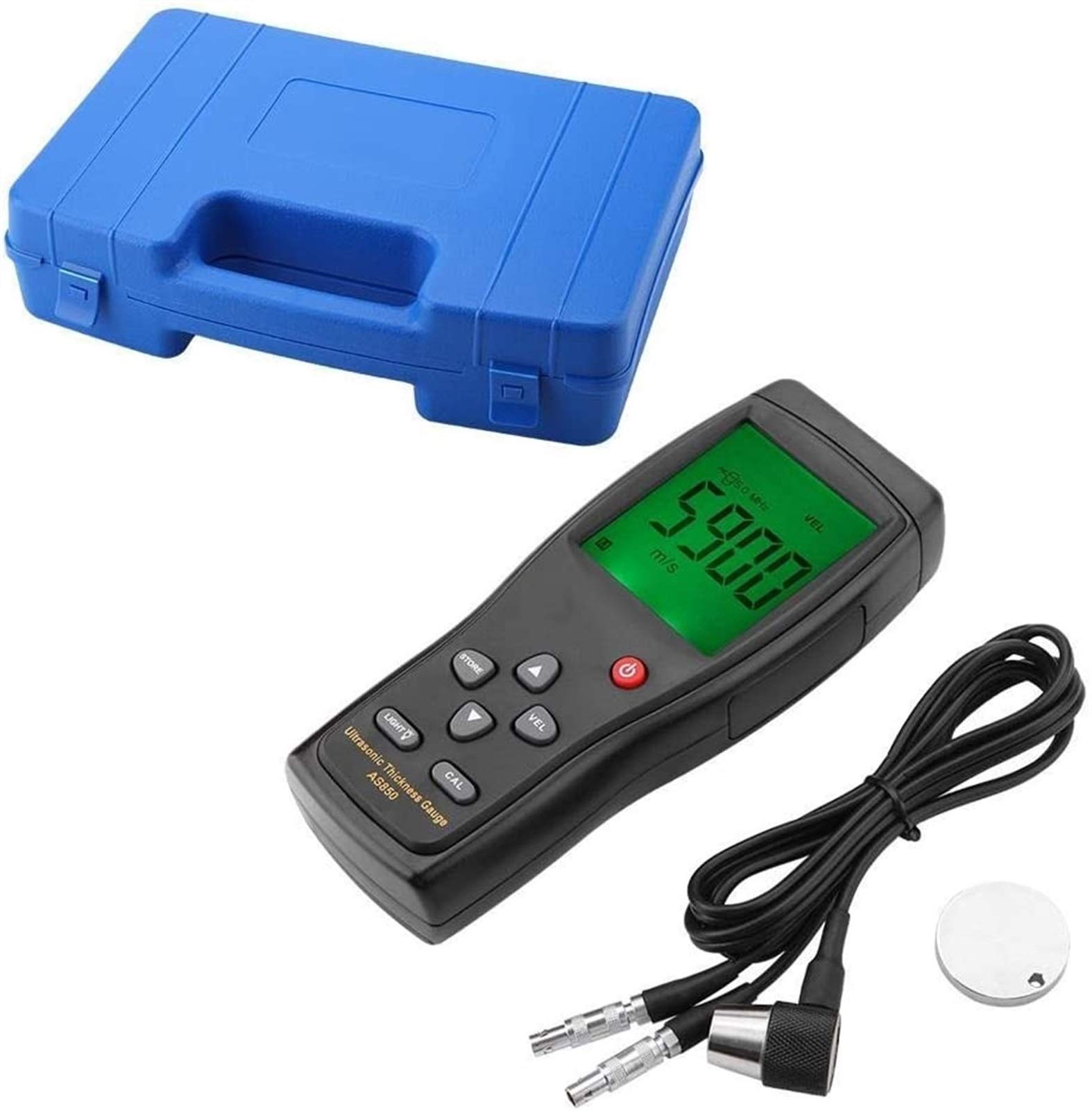

Please feel free to buy our products, we have excellent after-sales service. Your Smile is Our Happiness.If you are not satisfied with our products, please contact us and we will serve you wholeheartedly. Specification: Display:4-digital LCD display Measuring range:1.2~225mm(steel) Minimum limit for tube measuring:Dia.20×3mm (steel) Accuracy:±(1%H+0.1)mm,H denotes the measured thickness Sound velocity range:1000 to 9999 m/s Working frequency:5MHz Minimum display unit:0.1 mm Minimum limit for tube measuring(steel):20×3.0mm(steel) Sound velocity Range:1000~9999m/s Measuring sound velocity with a given thickness measuring range:1000 to 9999 m/s When the given thickness>20mm,the accuracy is +/-5% when the given thickness Operation temperature:0℃ to 40℃ Relative humidity: temperature: Power supply:1.5V AAA×3 PCS (not include due to air limit) Operation current:Normal operation current 50mA With Backlight turn on current 120mA Stand-by current:20uA Stand-by current:20uA Product Net Weight/ Product Size 804g/16×6.4×3cm Packing Contents 1×Ultrasonic Thickness Gauge 1×10mm 5HZ Transducer 1×4mm Sampling Block 1×Operating Manual (Without Gel and Battery) Package list: 1×Ultrasonic Thickness Gauge(battery not included) 1×Plastic box 1×4mm calibration block 1×probe (10mm 5MHz) If you do not understand, please send us an email.
Features
Sound velocity measurement With a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table.
Auto linear compensation this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.Auto calibration to assure the accuracy.
12 sound velocity for different material,use and keys to make a quick adjustment for the sound velocity /thickness,and a quick recall to the stored data.
Coupling status indication Observing the coupling icon to learn if the coupling is accomplished or not.
10 thickness measurement storage and recall function is available,which facilitates the height work or working in wild area.
